SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Color: black

Commutation: Brushless

High-concerned chemical: None

Model Number: SEQURE 3625

Origin: Mainland China

Output Power: 746-750（include750）

Type: Brushless Motor

Usage: Car

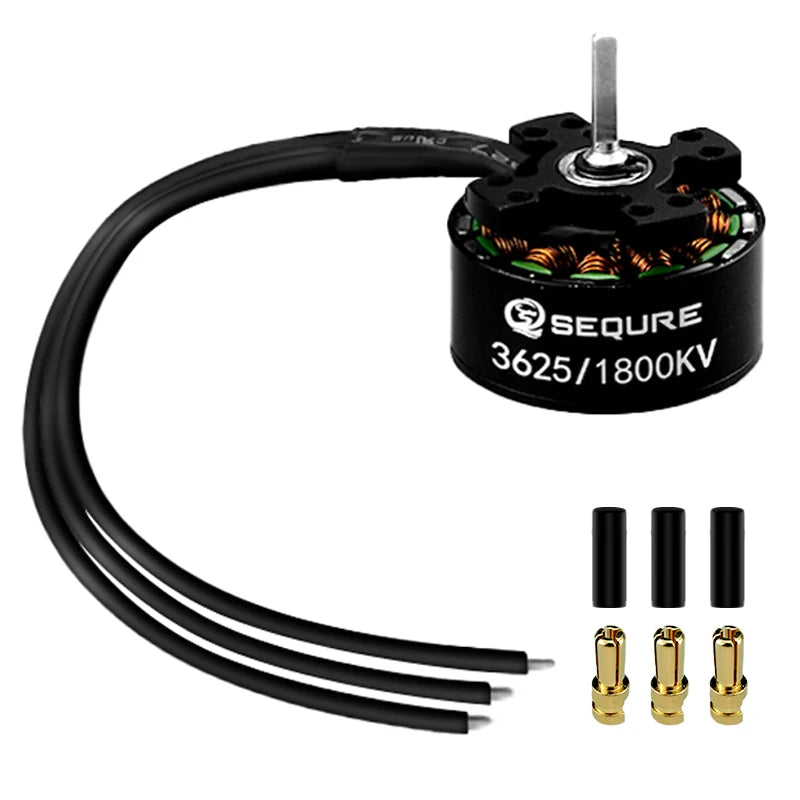

Package Included:

SEQURE 3625 brushless motor × 1

3.5mm banana plug × 3

Heat shrink tube × 3

Product Description:

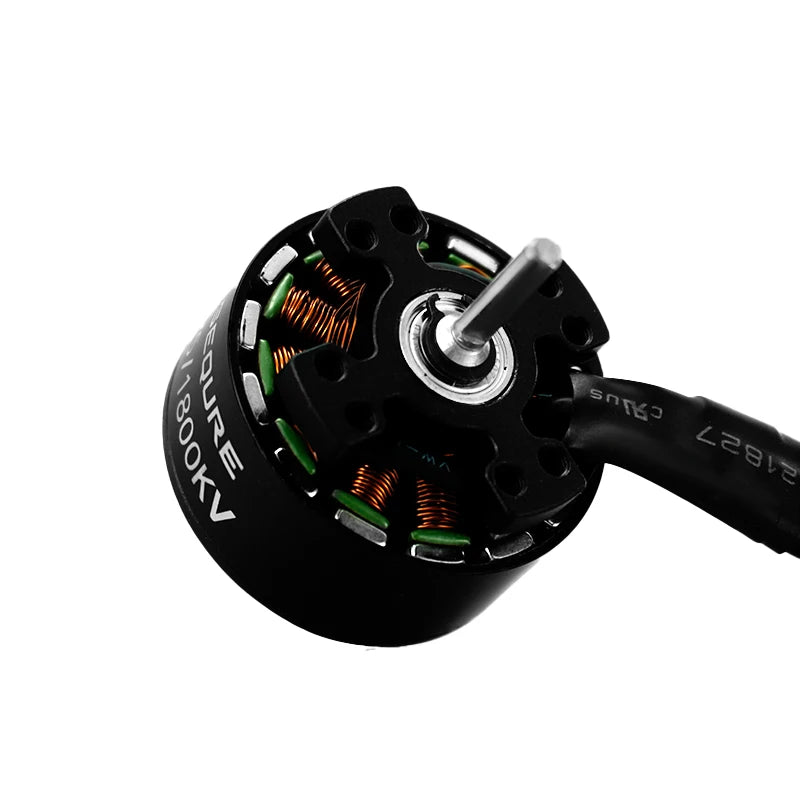

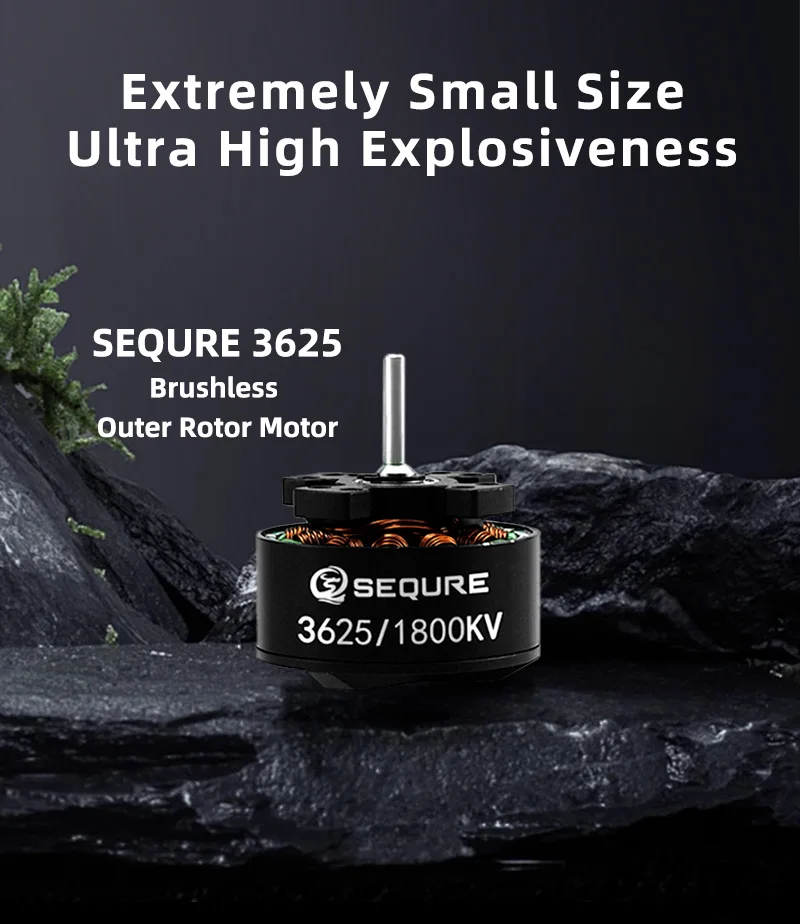

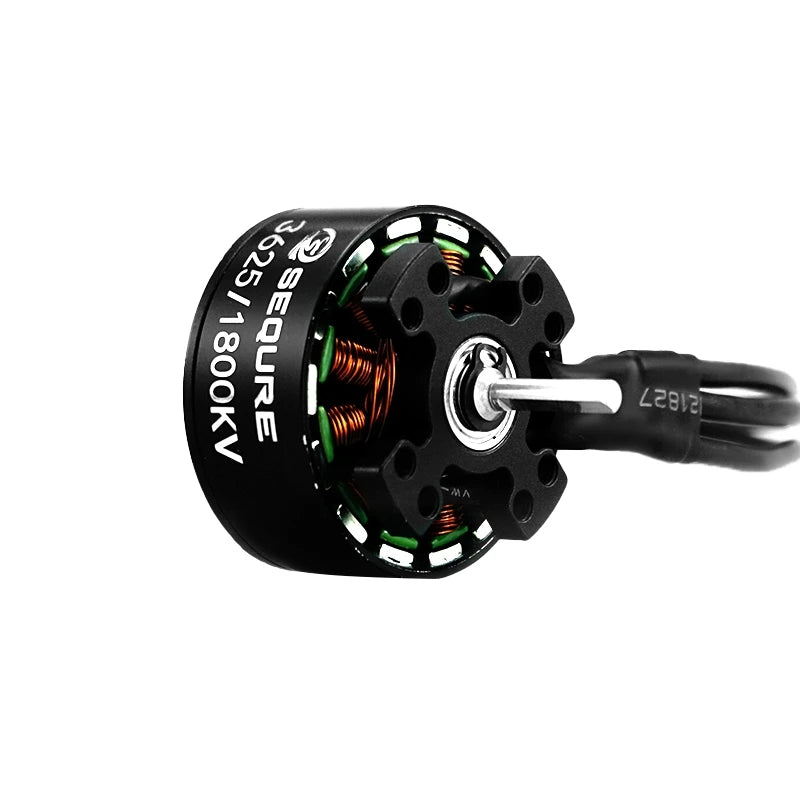

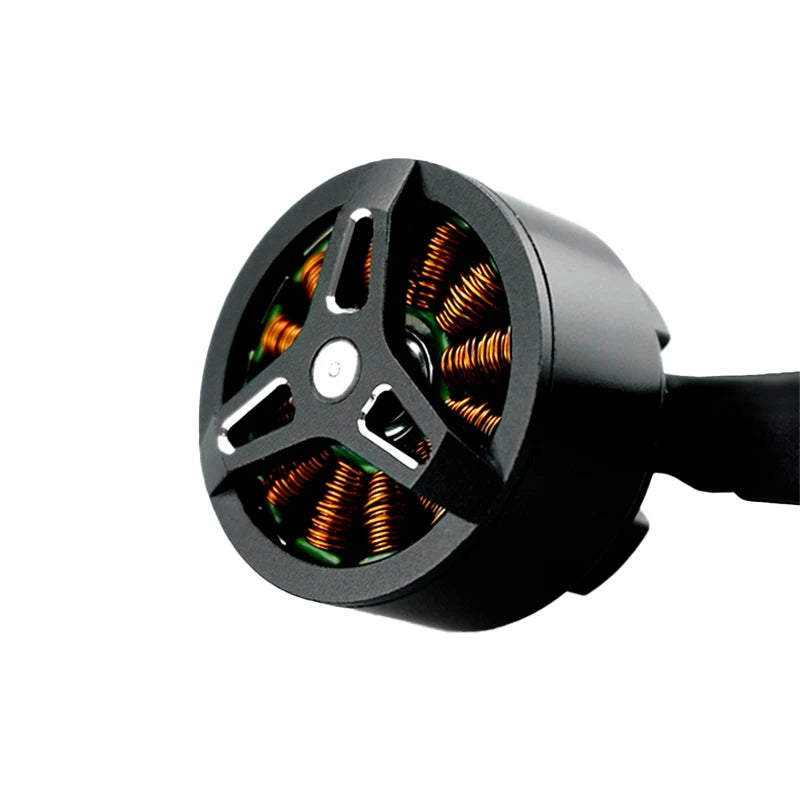

(1) SEQURE 3625 is a high-performance brushless outer rotor motor specially designed for 1/10 remote-controlled climbing crawler cars. Features with the smallest size, highest power, and largest torque.

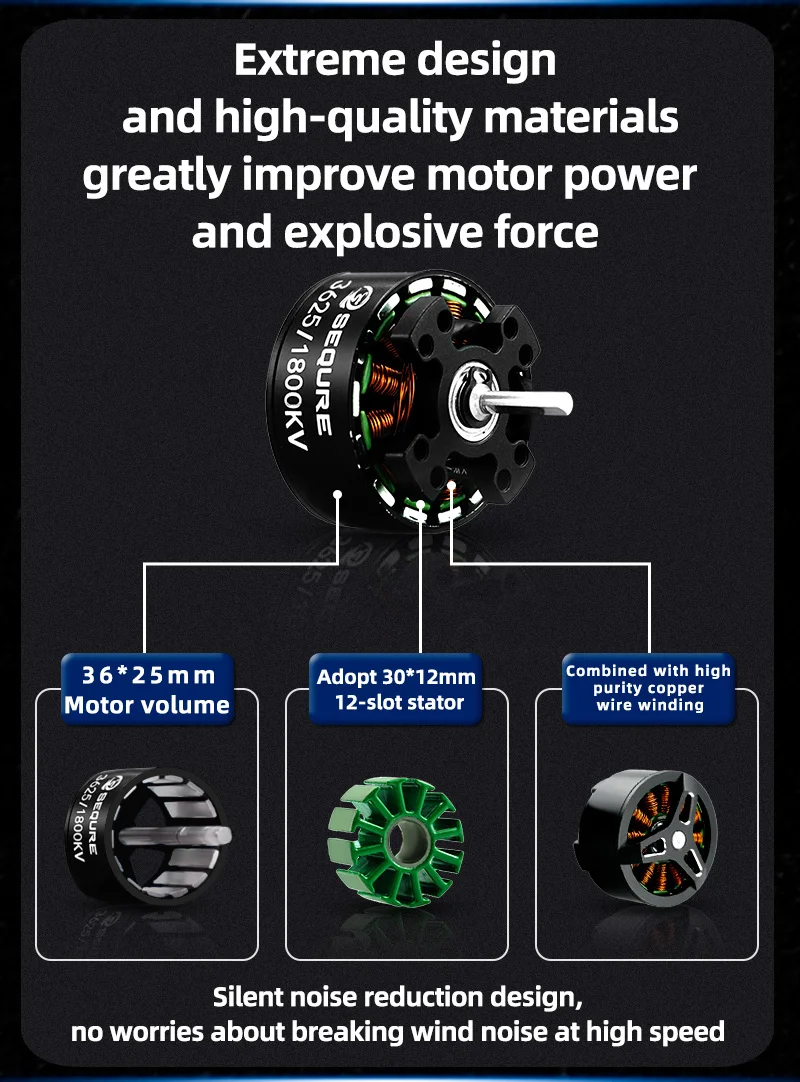

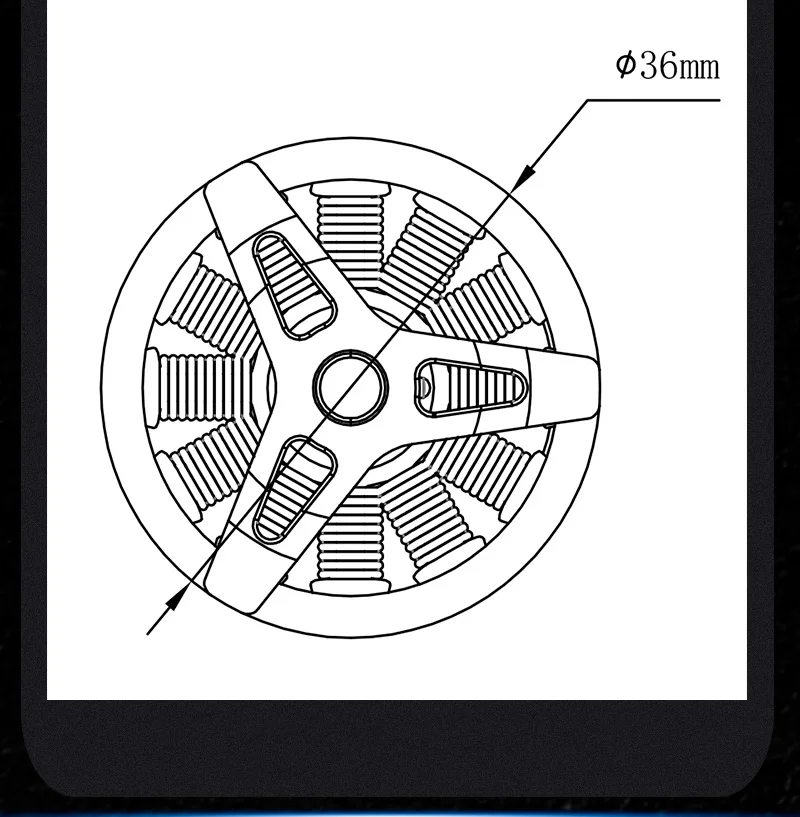

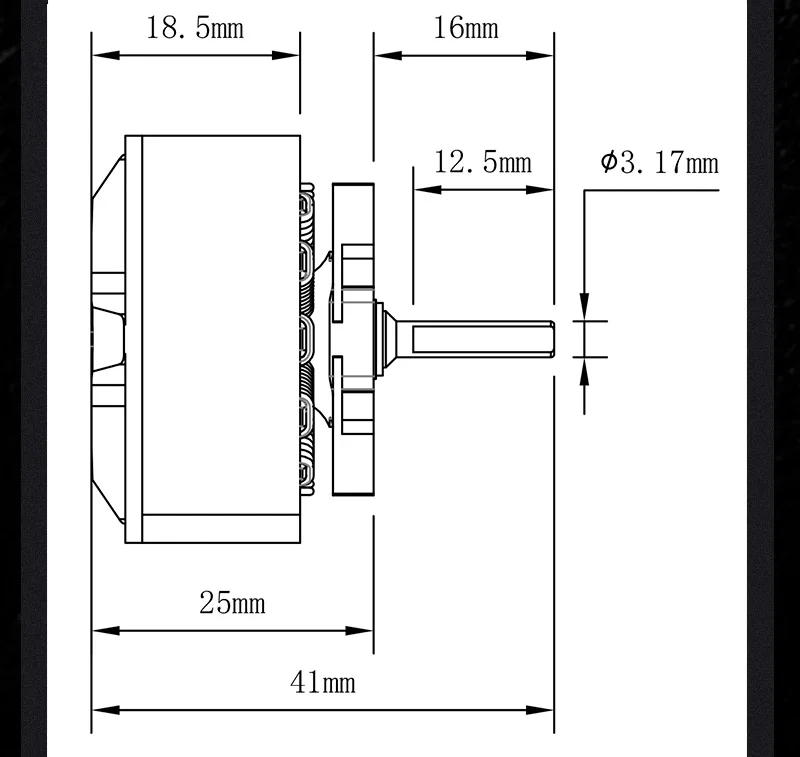

(2) The motor has a volume of 36*25mm and adopts a 12-slot stator of 30*12mm, combined with high-purity copper wire winding, which greatly improves the motor power and explosive force.

(3) The ultra-strong magnetic array composed of 14-pole curved high-temperature resistant magnets provides extraordinary rotor torque and powerful and fast braking response.

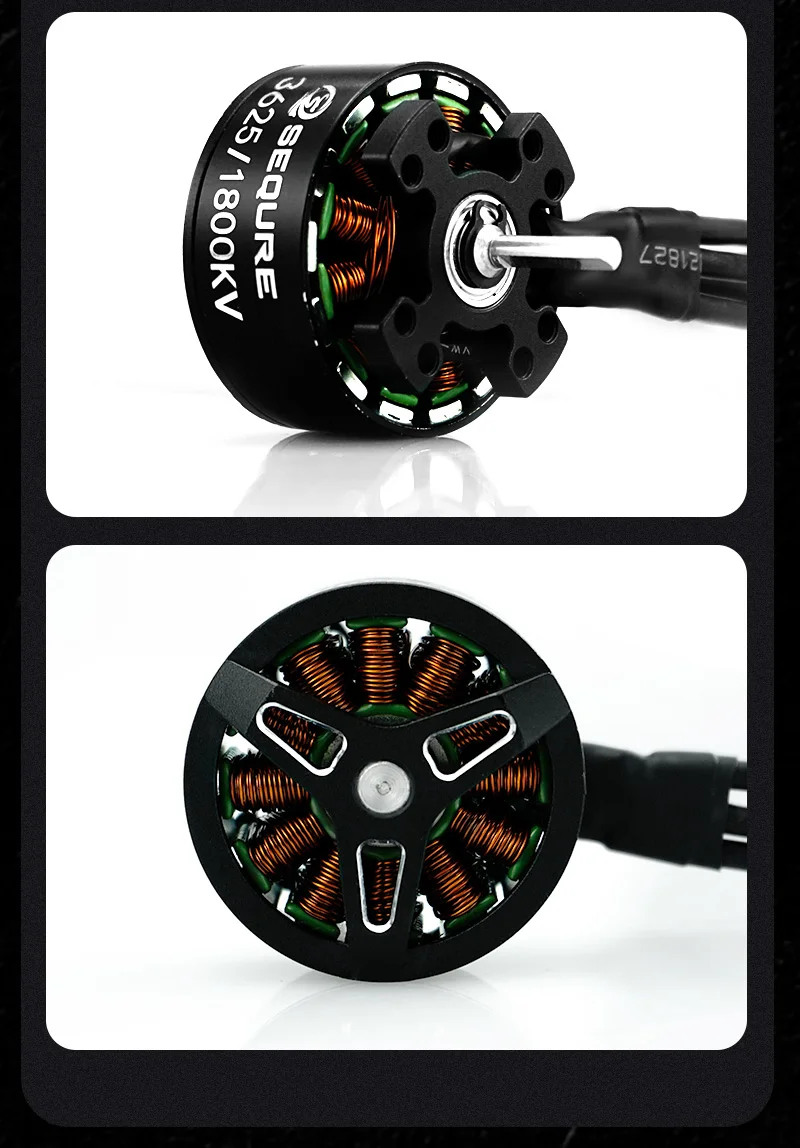

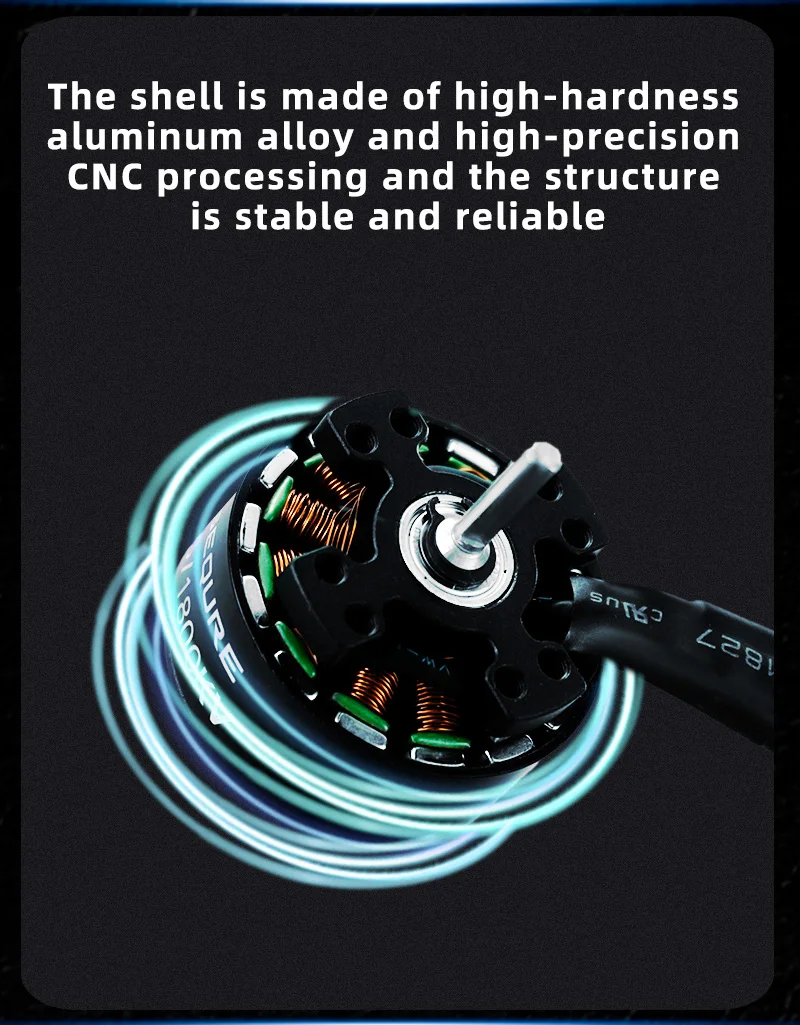

(4) The shell is made of high-hardness aluminum alloy and high-precision CNC processing, and the structure is stable and reliable.

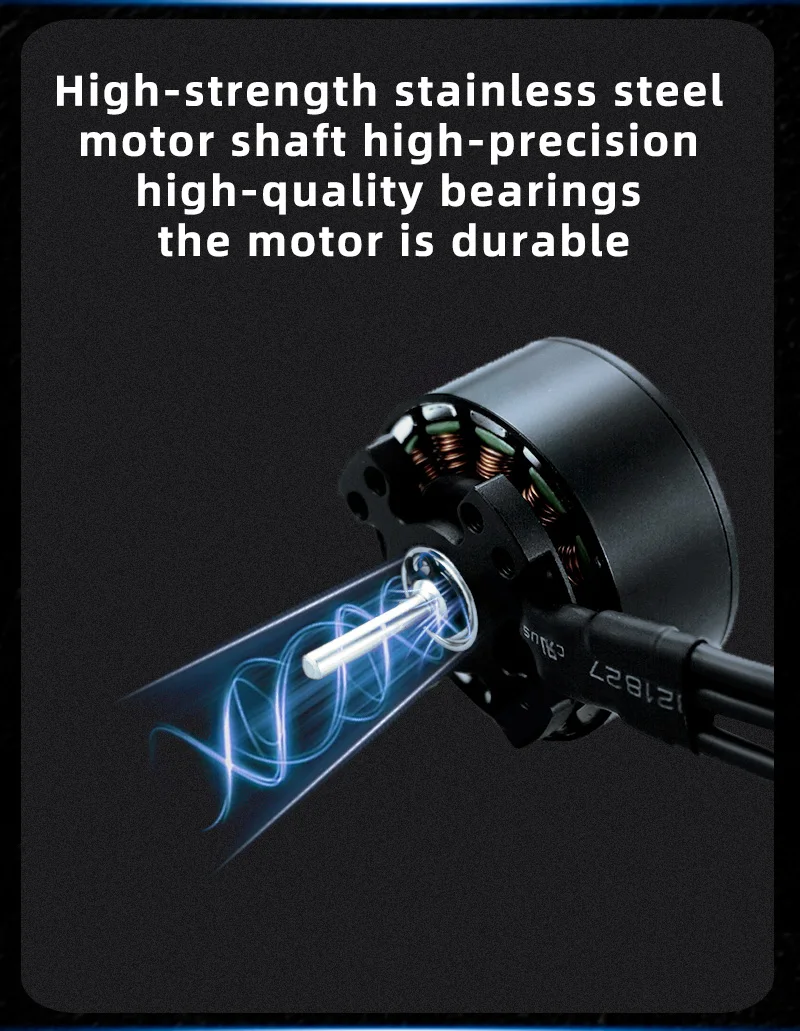

(5) High-strength stainless steel motor shaft, high-precision high-quality bearings, the motor is durable.

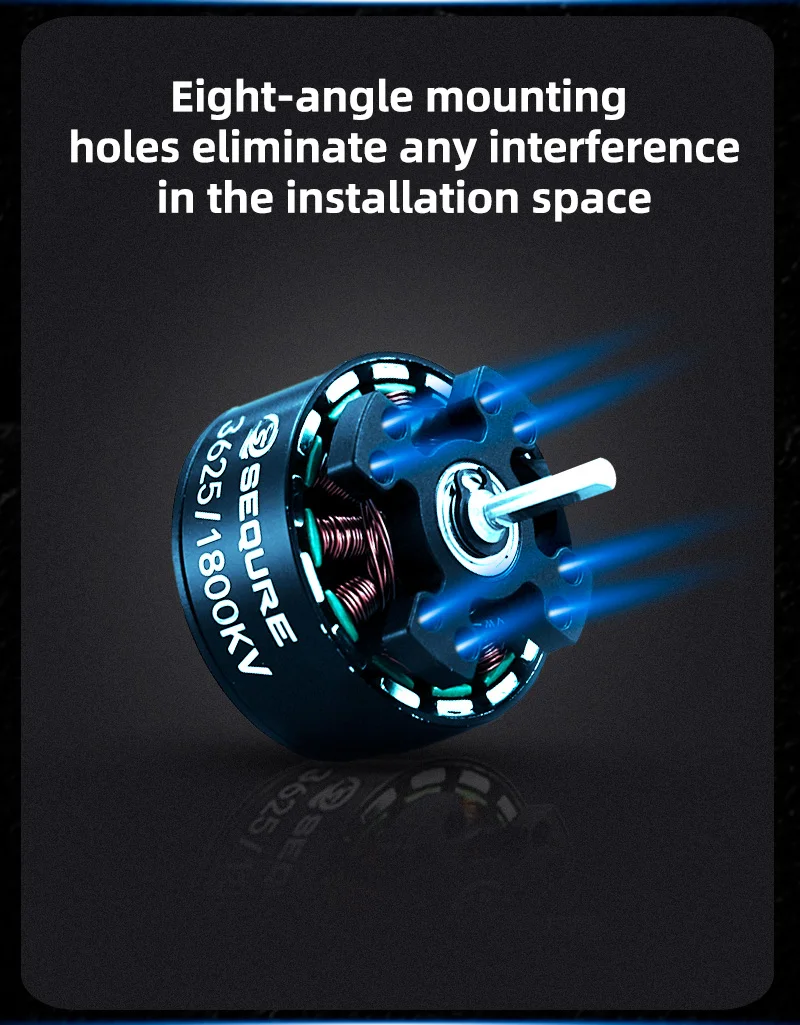

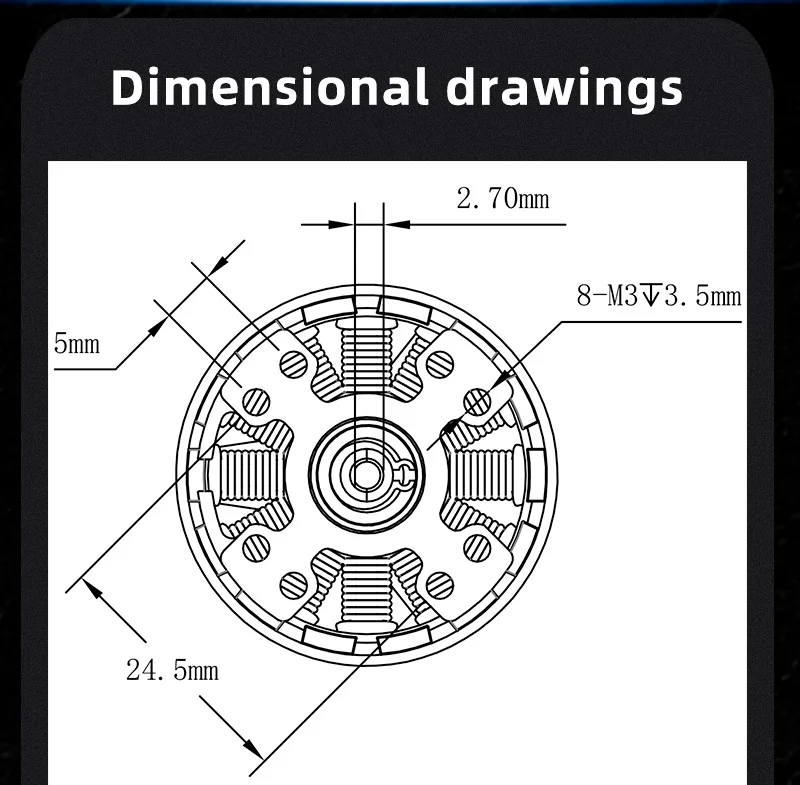

(6) Eight-angle mounting holes eliminate any interference in the installation space.

(7) Silent and denoise design to lower the operating noise greatly. No worry about the breaking wind noise at high speed.

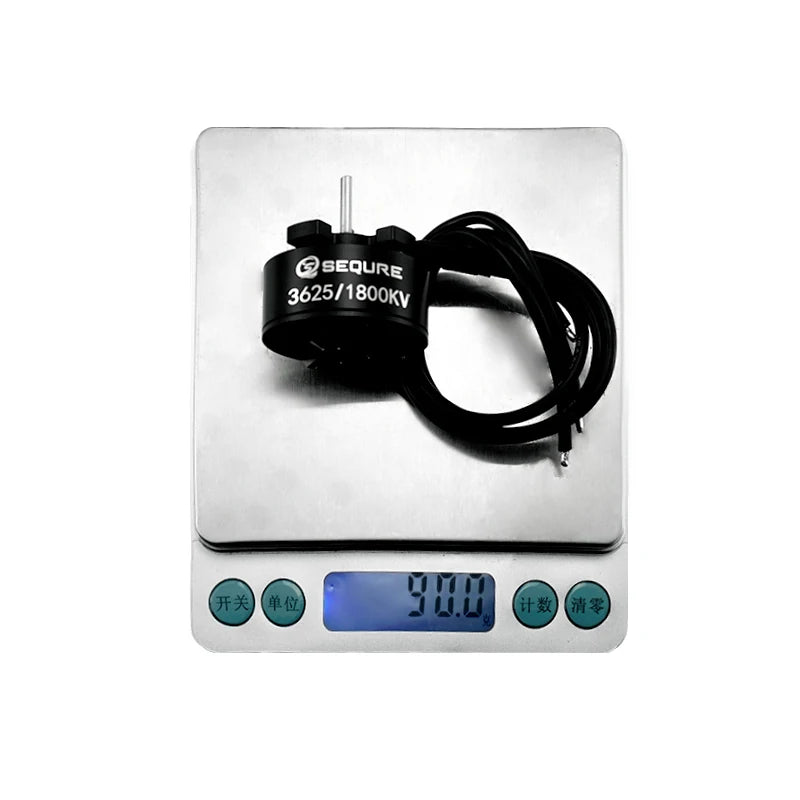

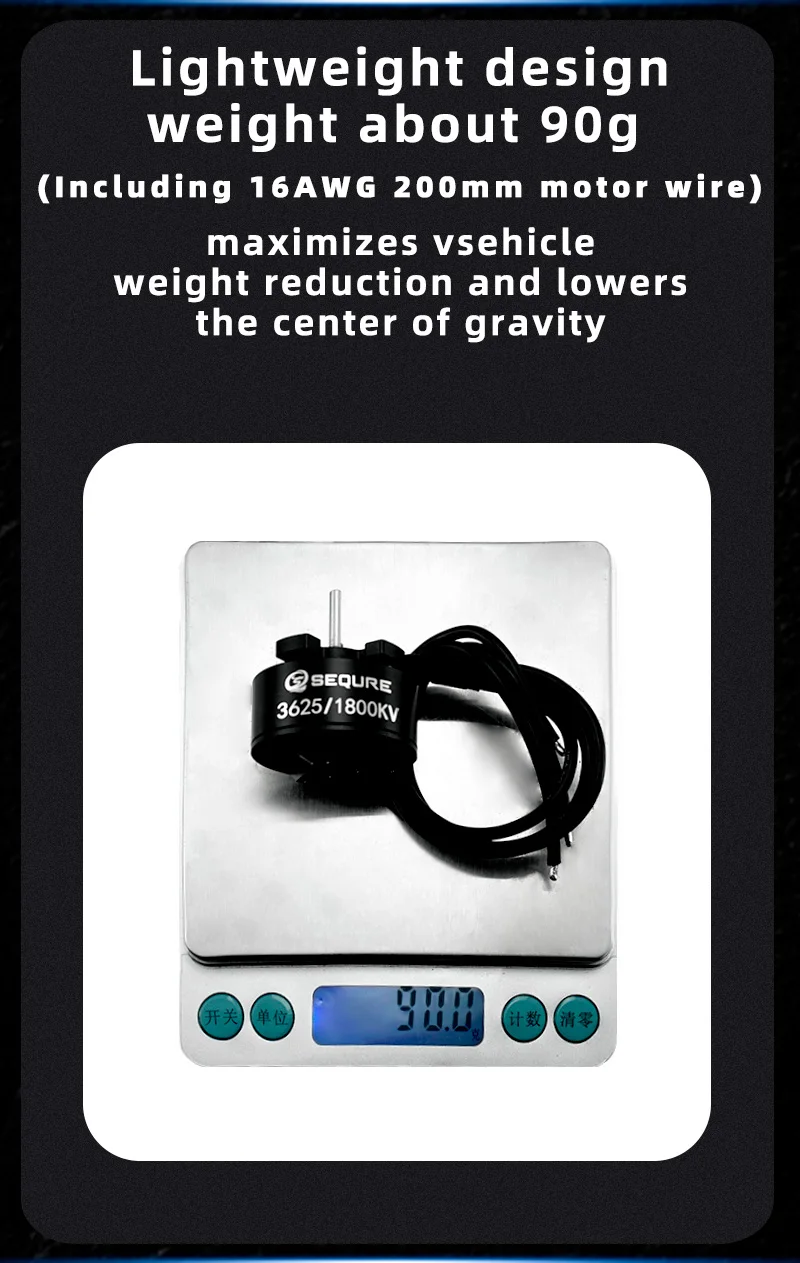

(8) Lightweight design, weight about 90g (including 16AWG200mm motor wire), maximizes the reduction of vehicle weight and lowers the center of gravity.

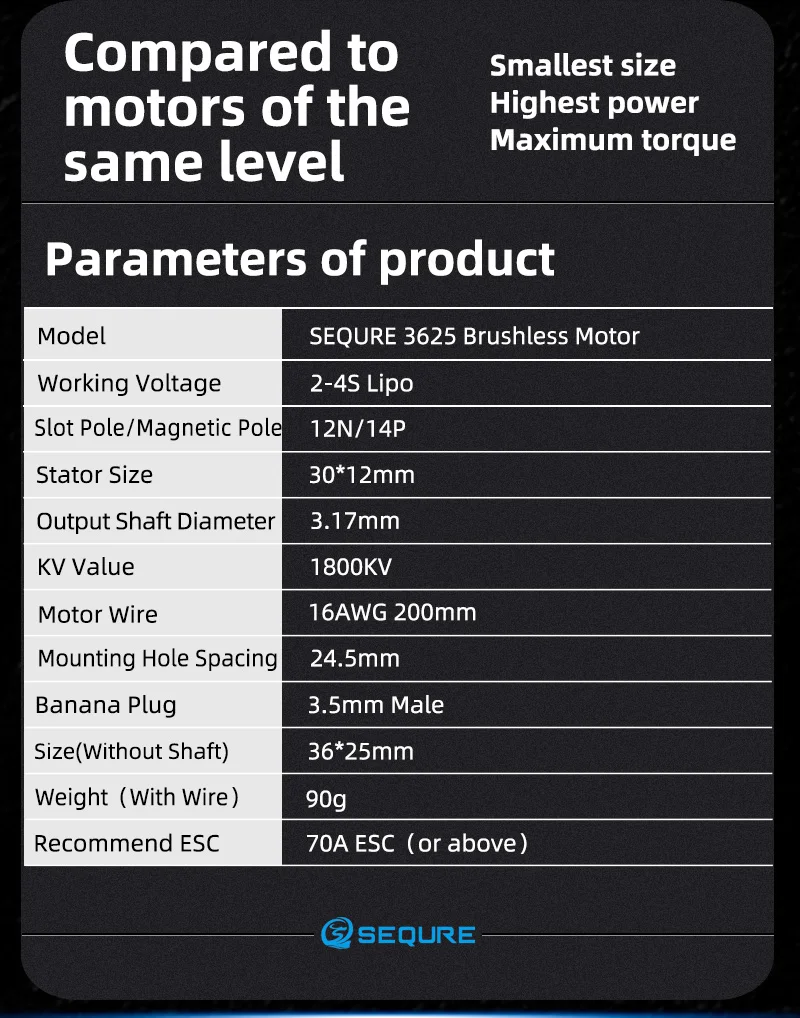

Parameters of Product:
