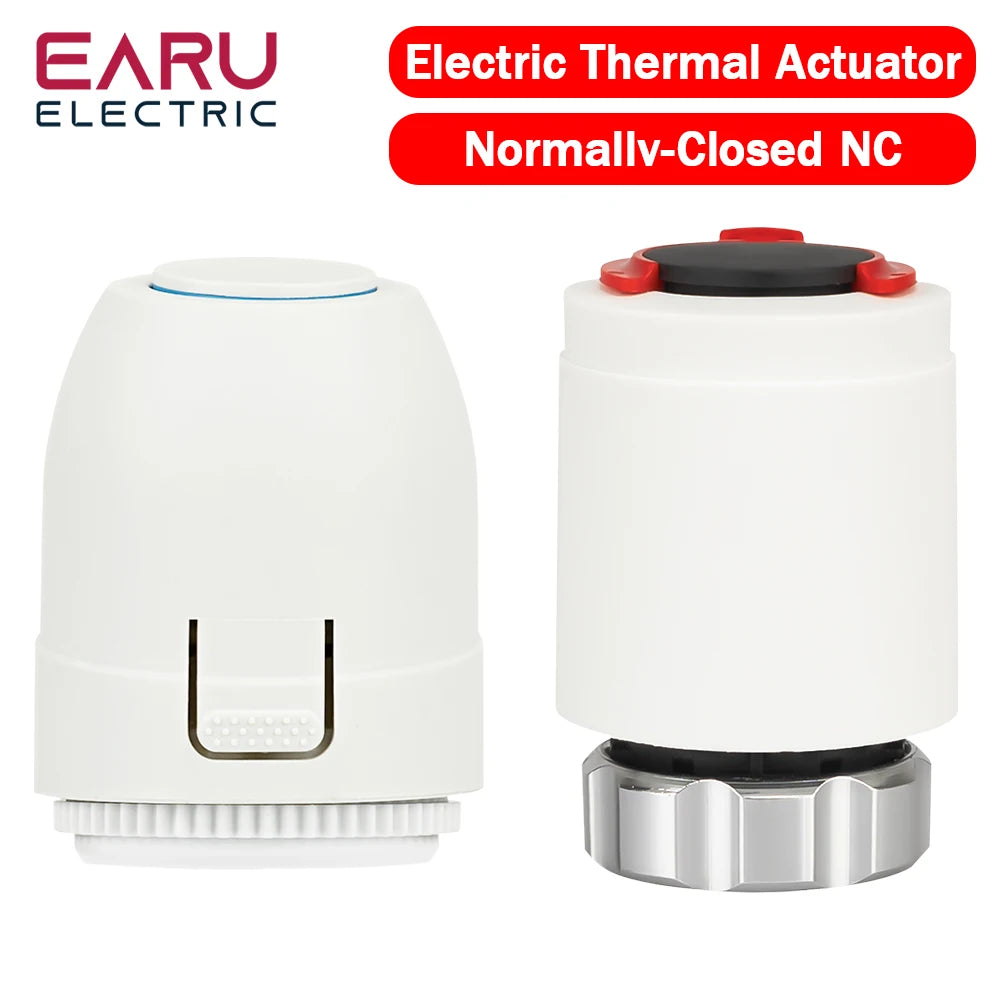

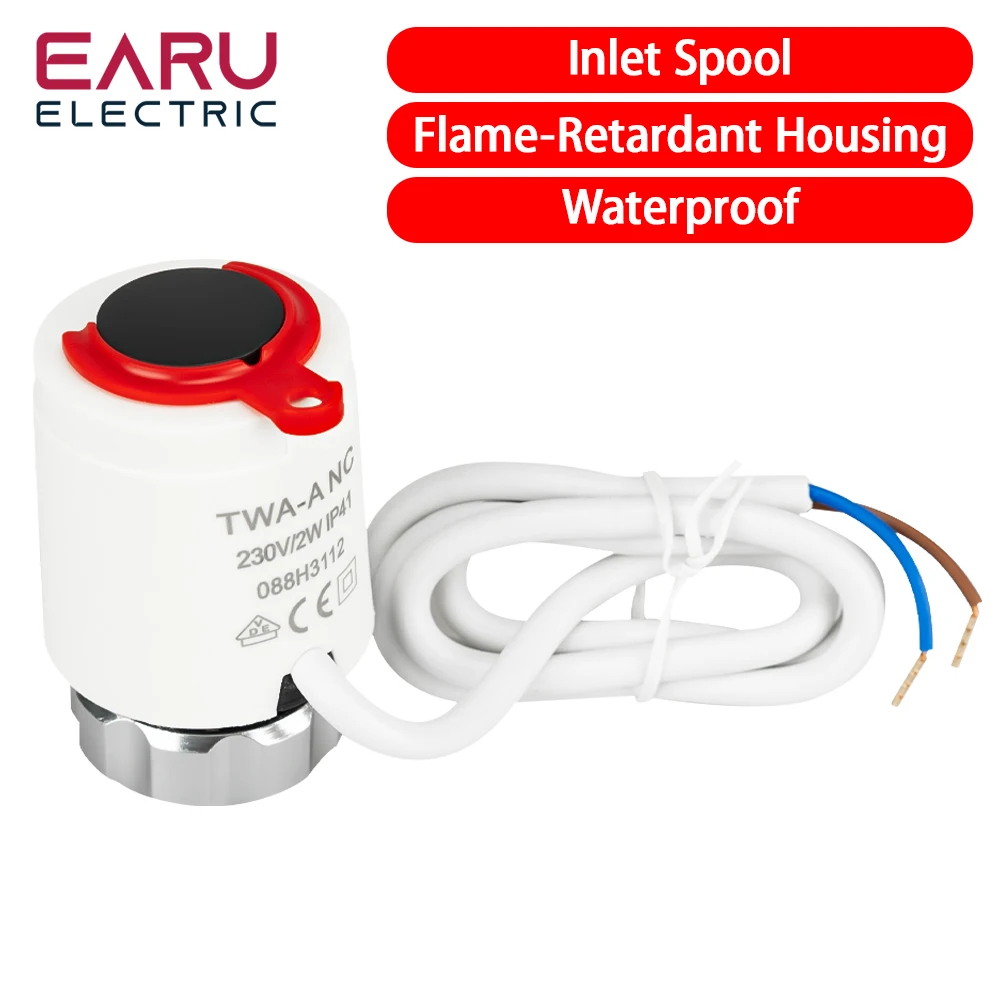

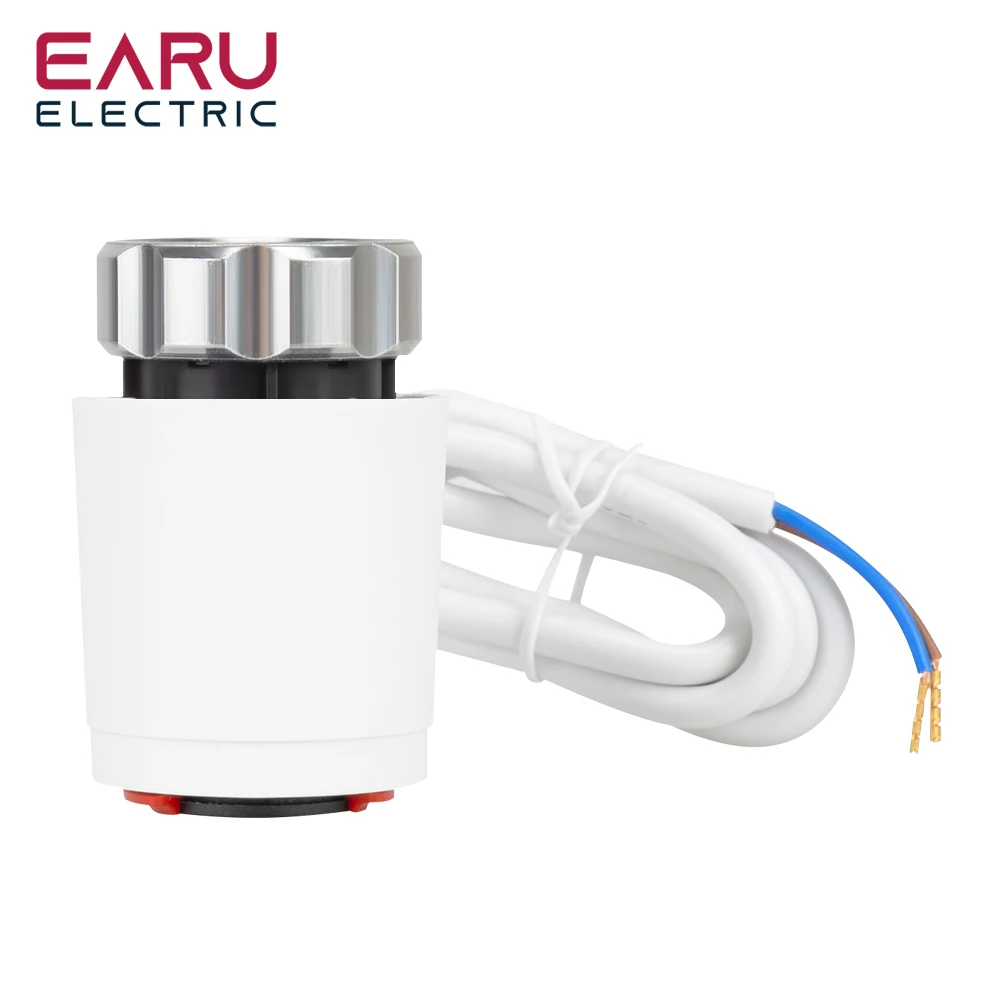

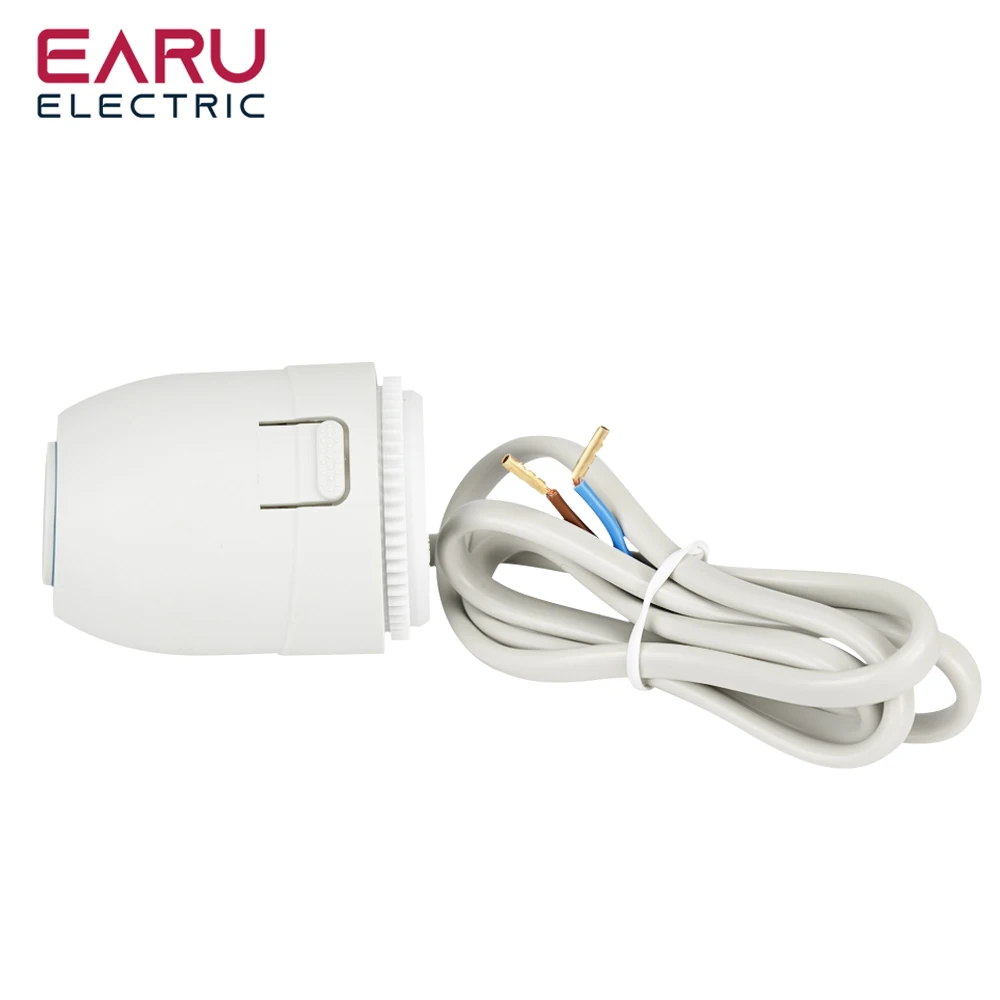

Floor Heating Valve NC AC 230V M30*1.5mm Electric Thermal Actuator Manifold For Underfloor Heating TRV Thermostatic Radiator
Floor Heating Valve NC AC 230V M30*1.5mm Electric Thermal Actuator Manifold For Underfloor Heating TRV Thermostatic Radiator
SPECIFICATIONS
Actuator Mode: Without Manual And Instruction
Brand Name: NONE
Certification: CE,RoHS
Choice: yes

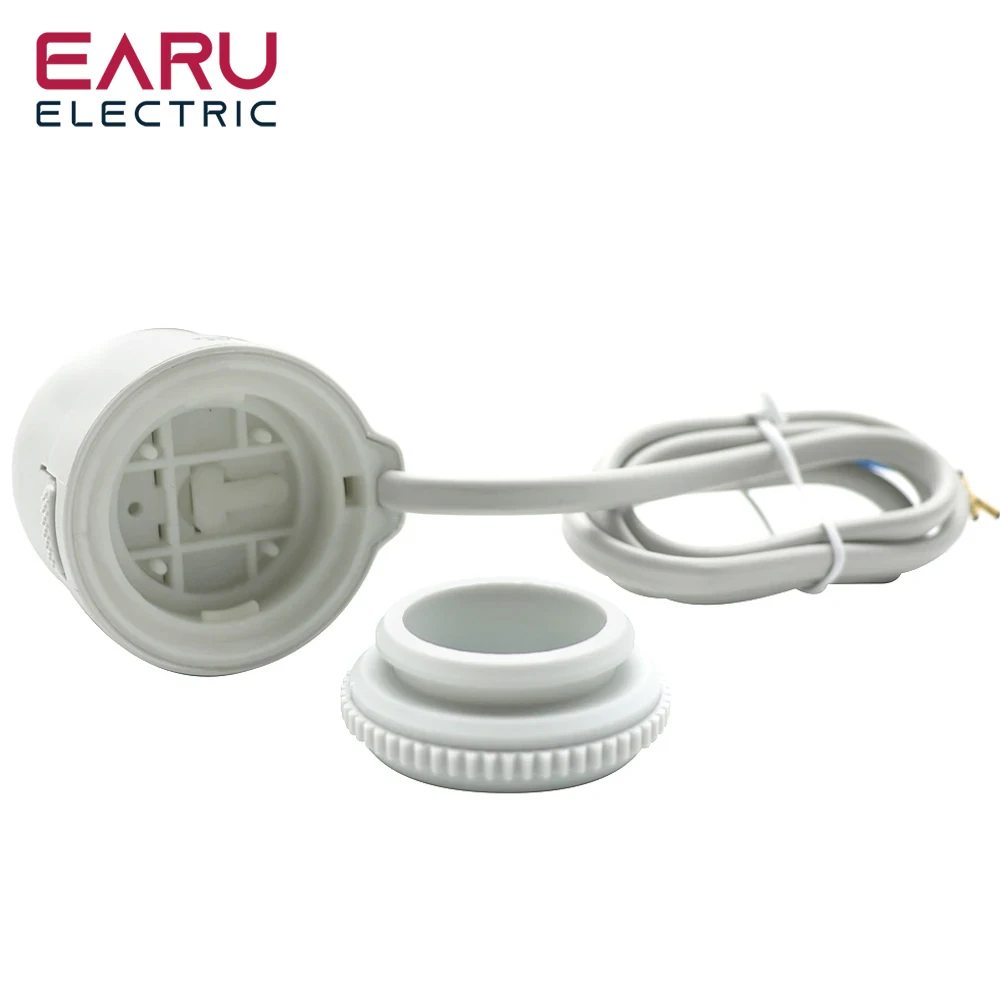

Connection specification: M30x1.5 (internal thread)
High-concerned chemical: None
Is Smart Device: No
Load: 110N
Main material: PA66+30%GF
Material: Plastic
Media: Water
Model Number: Thermal Actuator 230V

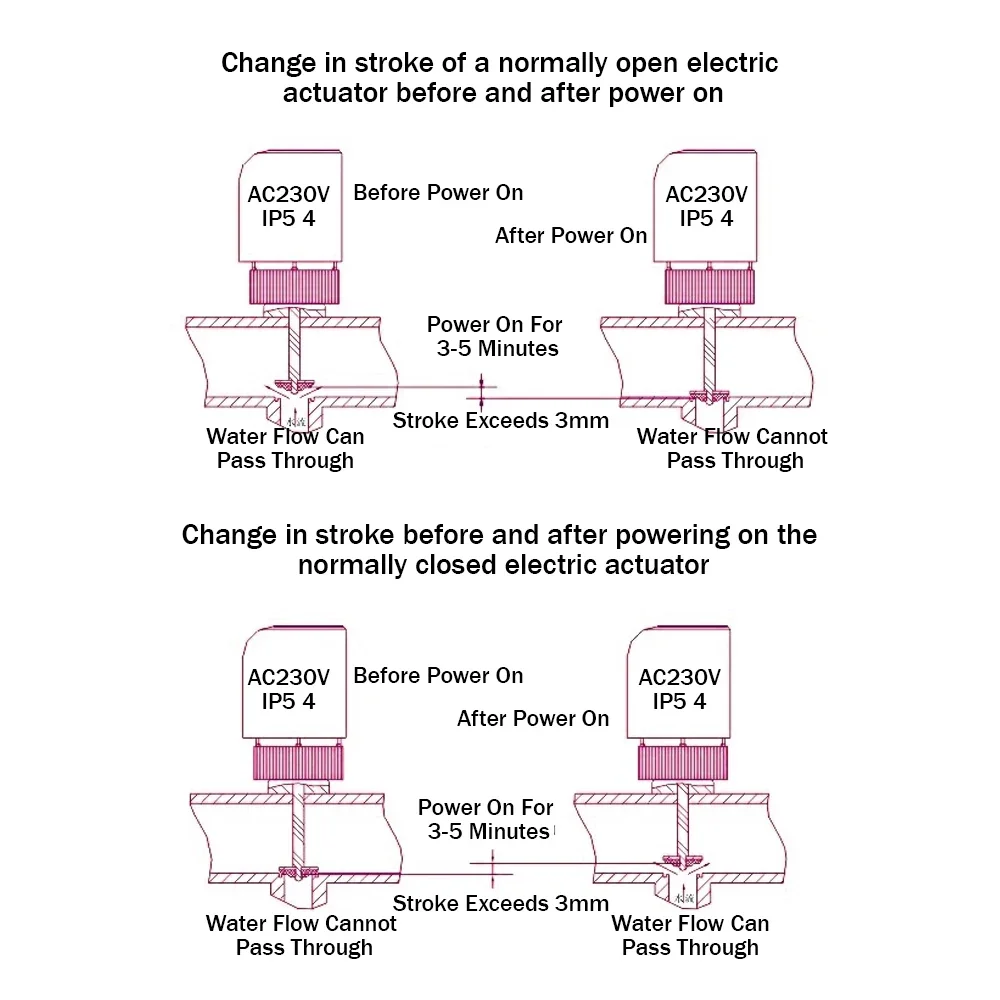

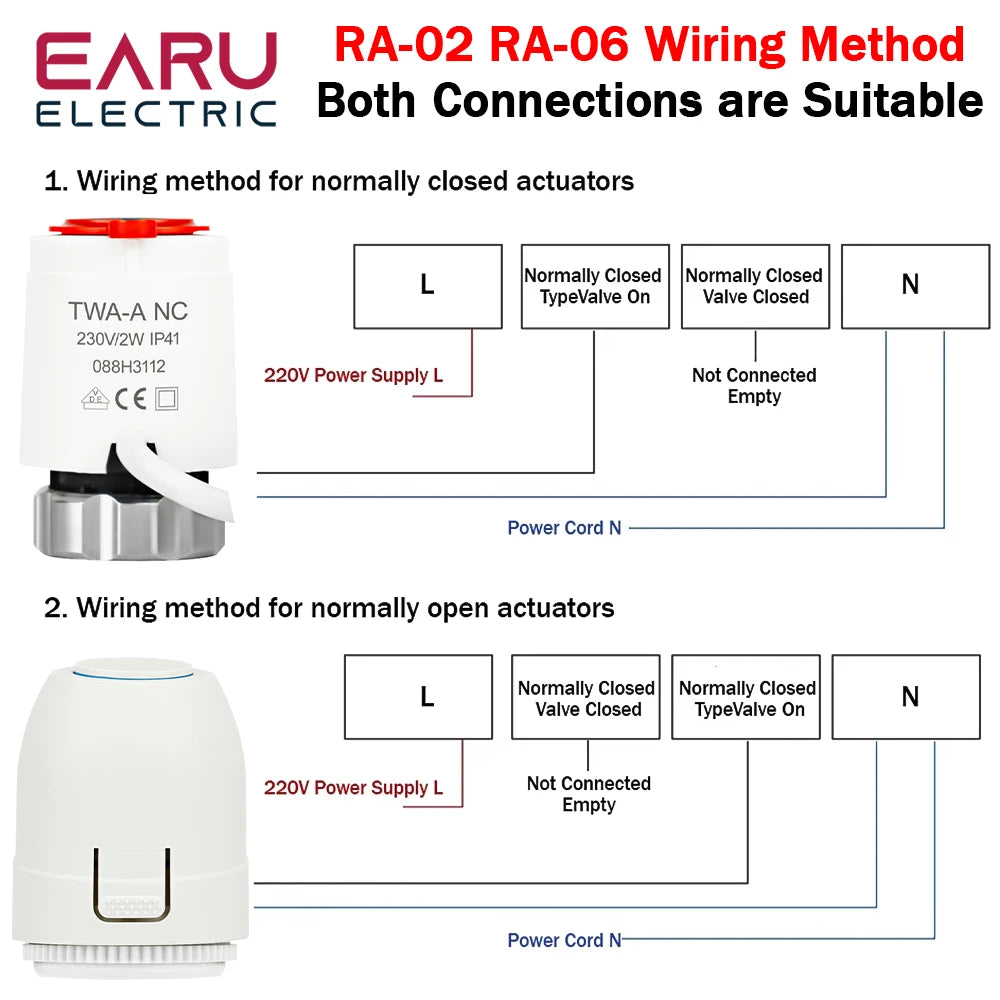

NC or NO: Normally Closed
Origin: Mainland China
Port Size: M30x1.5
Power: Hydraulic,2W
Power Source: Ac
Pressure: Medium Pressure

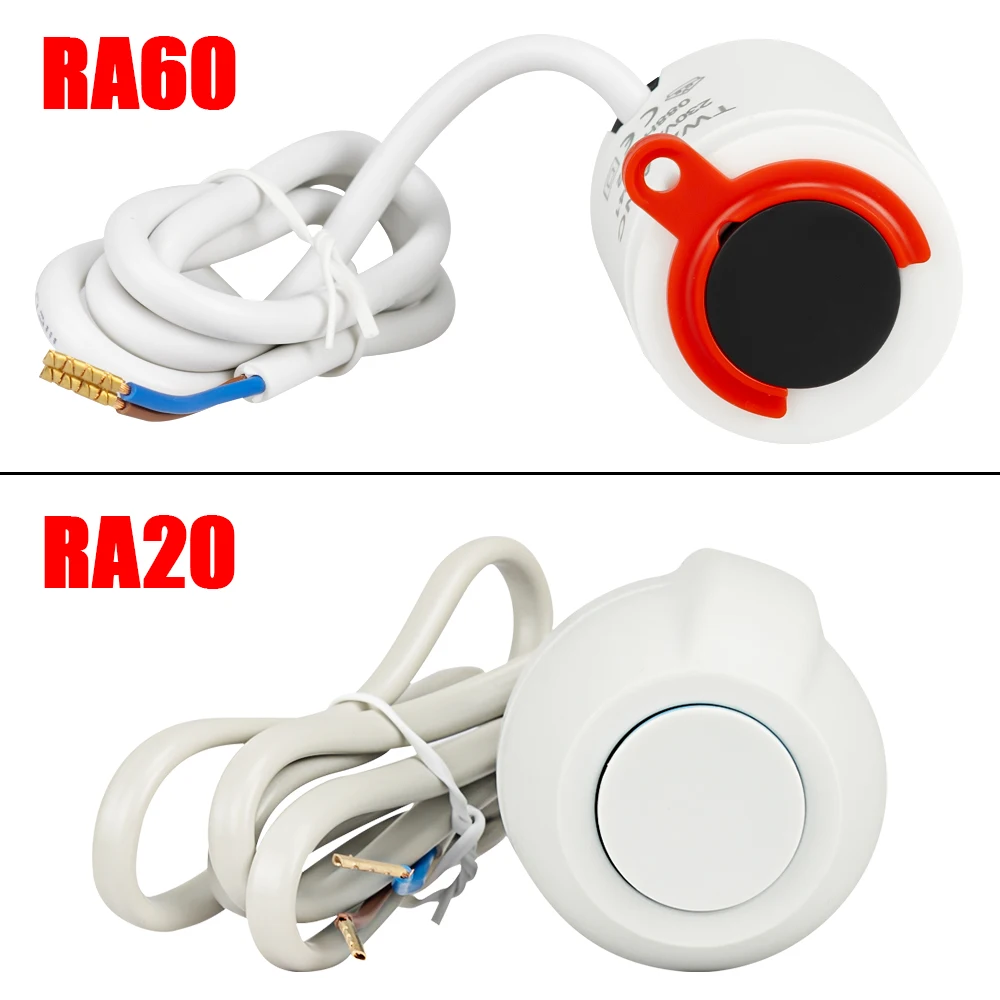

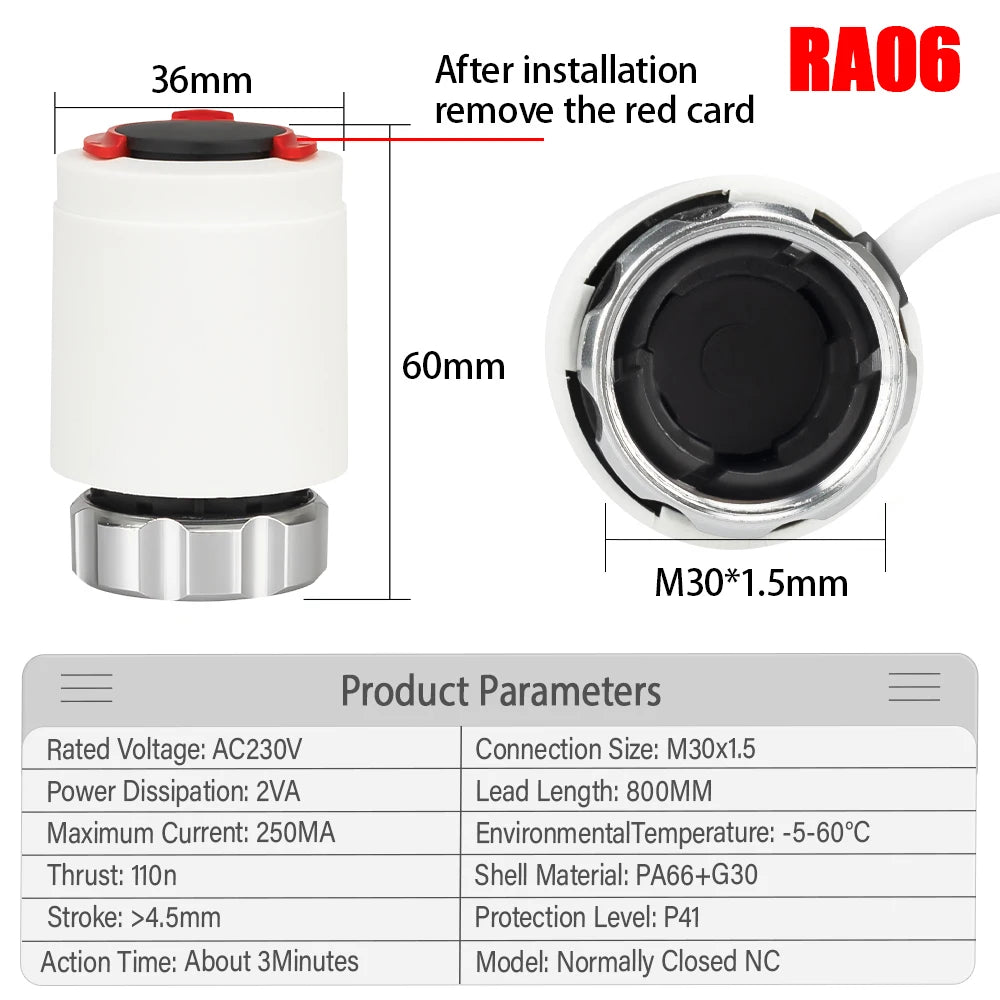

Protection class 1: RA06 IP41

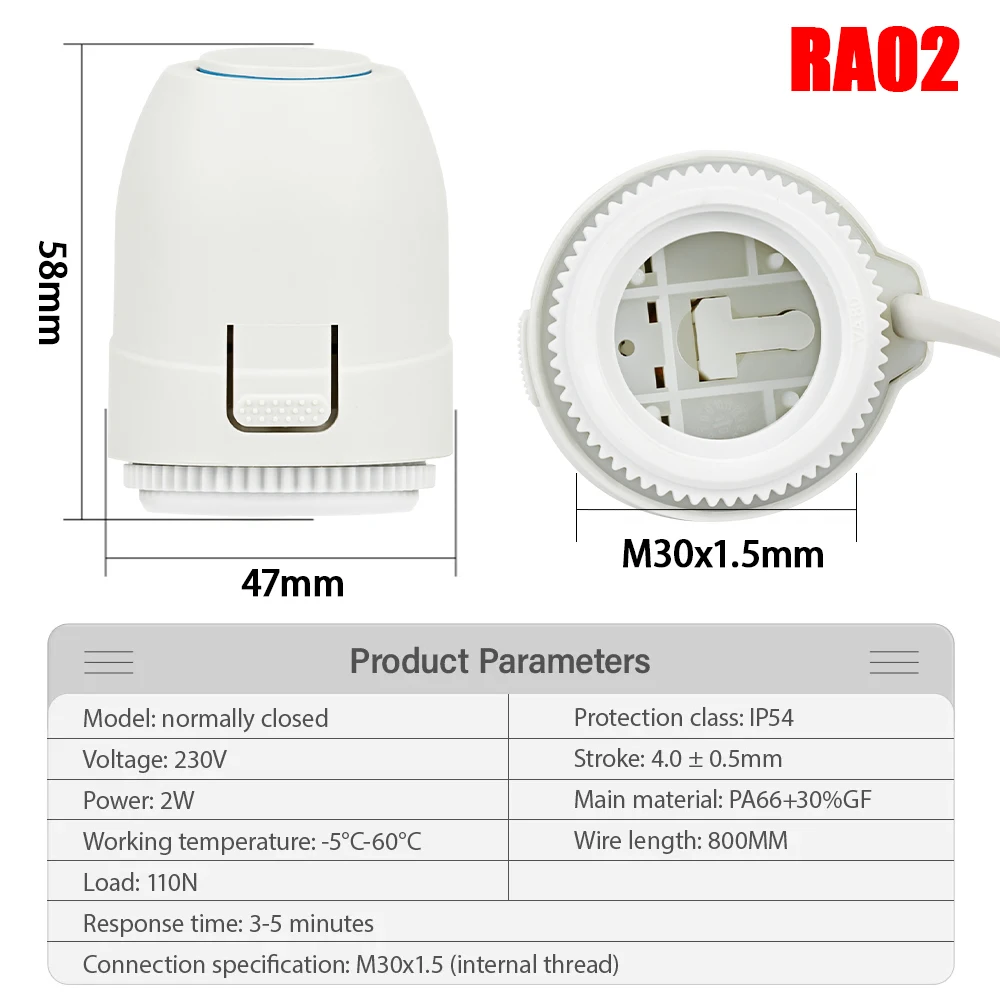

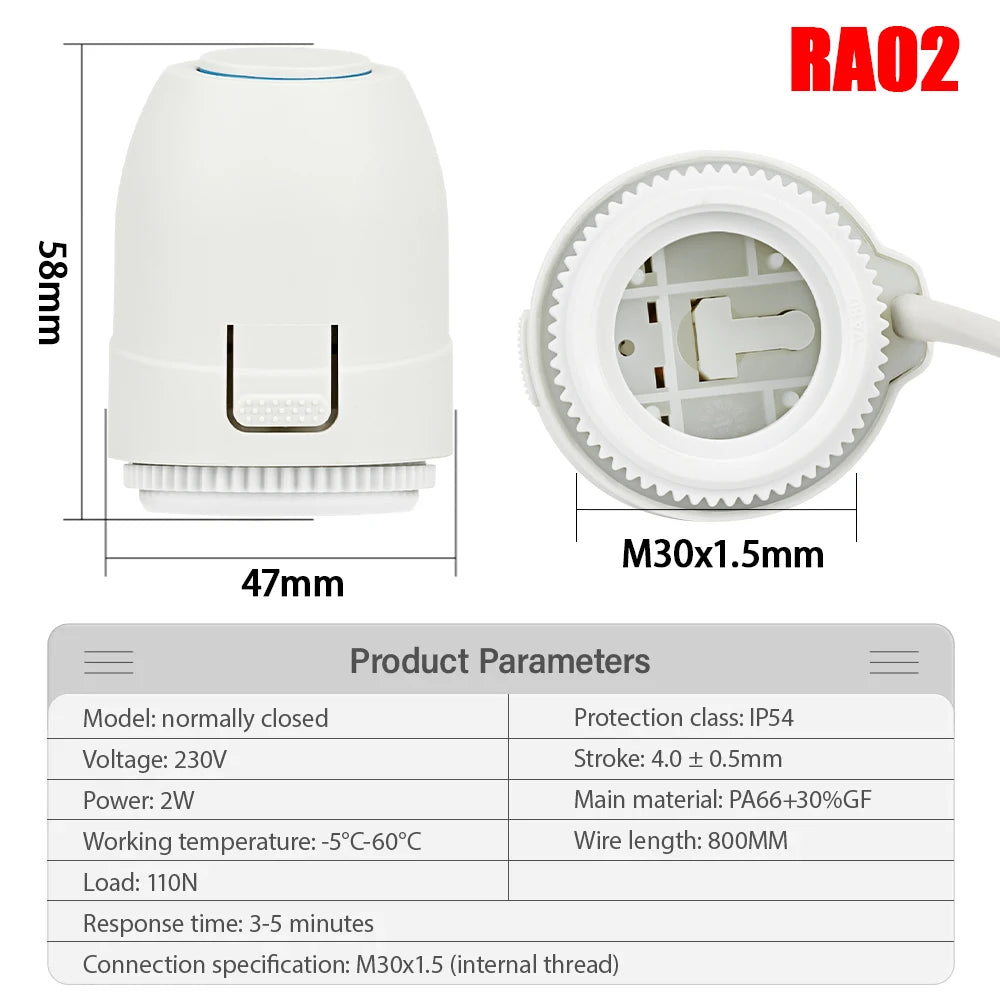

Protection class 2: RA02 IP54
Response time: 3-5 minutes
Standard or Nonstandard: Standard
Stroke: 4.0 ± 0.5mm
Structure: Shutoff
Temperature of Media: Normal Temperature
Voltage: 230V
Wire length: 800MM
Working temperature: -5°C-60°C
semi_Choice: yes
Specification:
Material: ABS + PC Alloy
Cap Nut: Approx. 3cm/1.18''
Length of Cable: 88mm
Stroke: Approx. 3.5mm
Voltage: AC 230V
Power Consumption: 2W
Running Time: 3-5min
Protective Housing: RA06/IP41 RA02/IP54
Ambient Temperature: -5℃ ~ 60℃

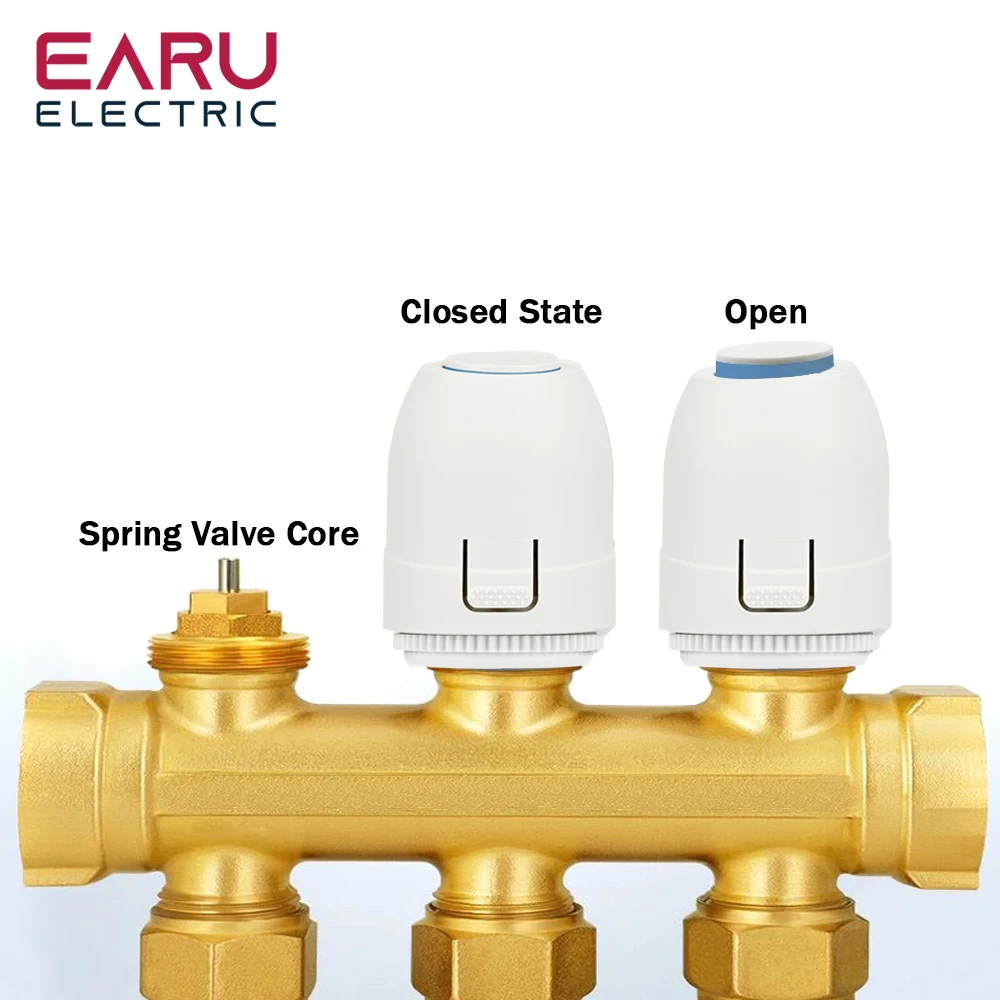

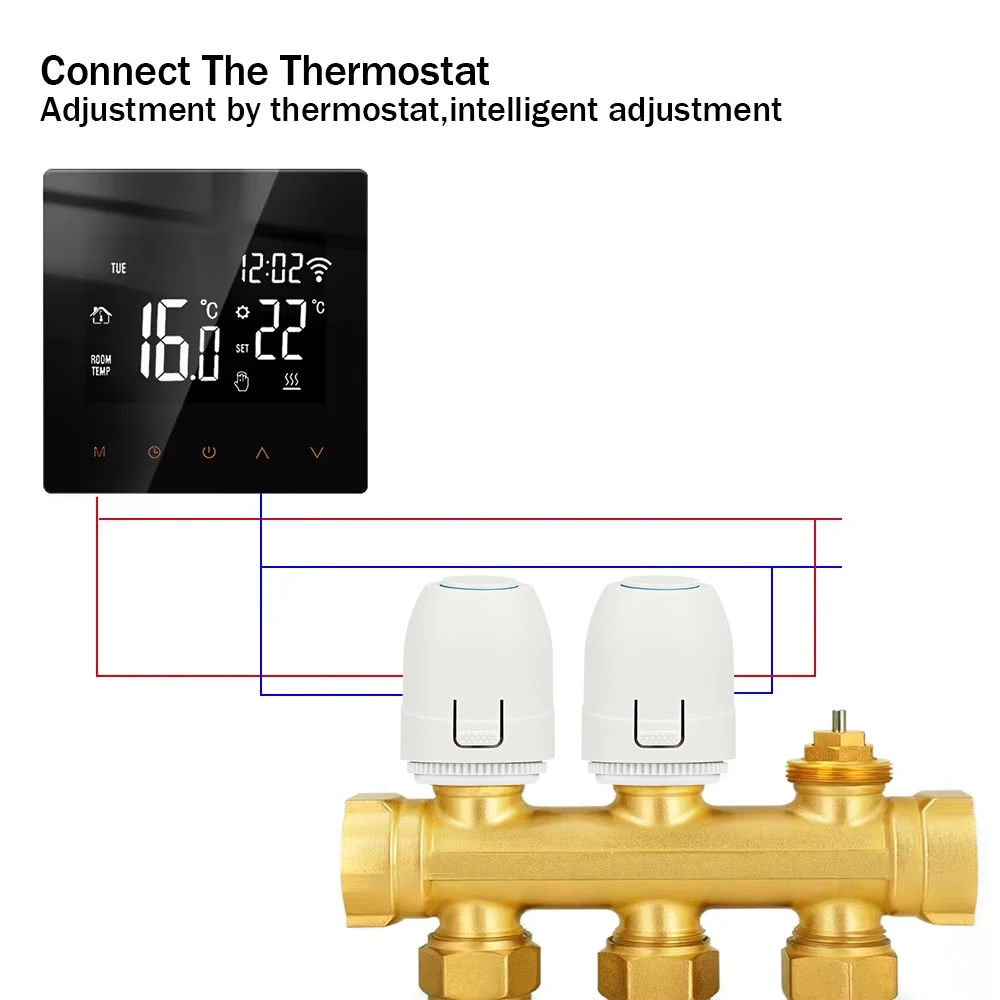

Suitable for Underfloor Heating Thermostat.
Anti-flammable PC housing, anti-flammable PA66 as internal components.

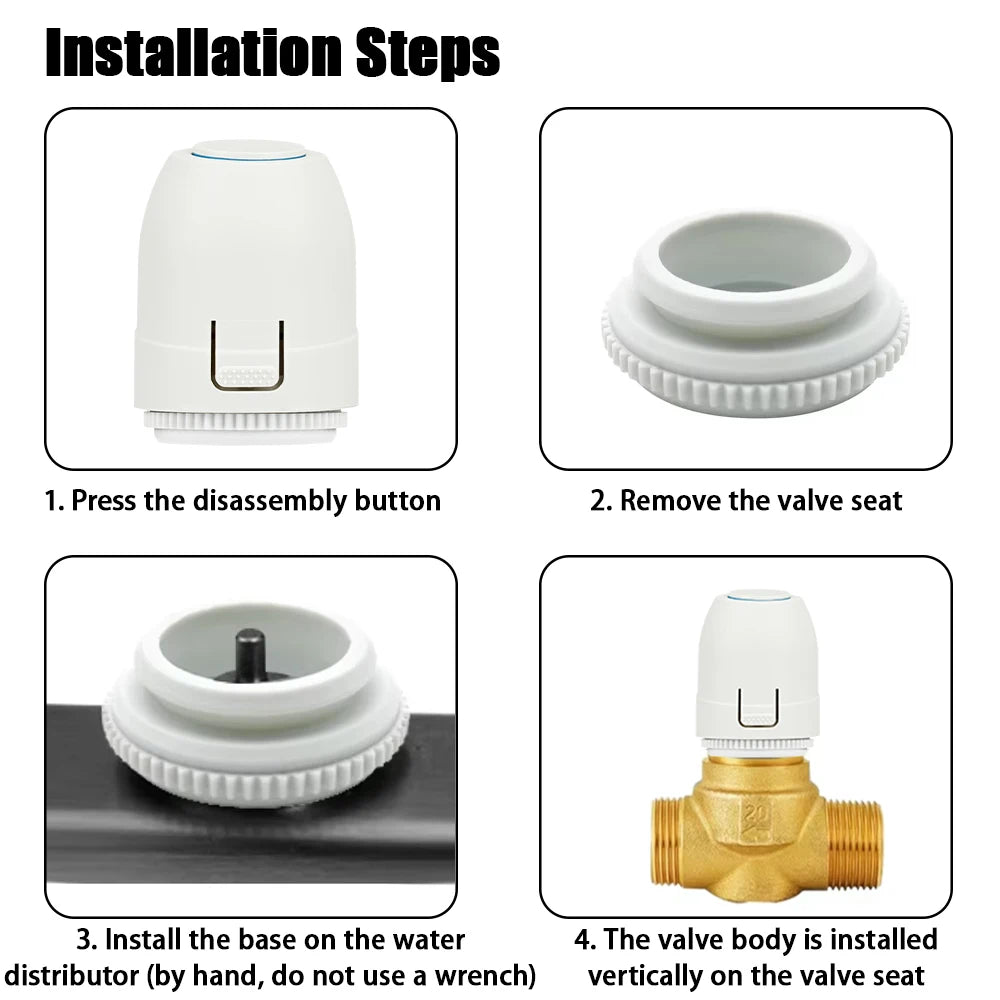

Mounting position:vertical position to 85° decline.
Package Included:
1 Pc * Electric Thermal Actuator
